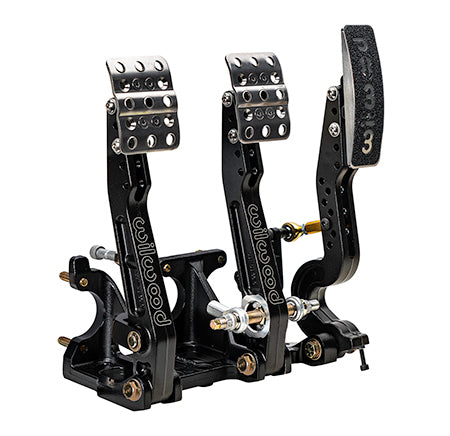

Wilwood 340-16605 Tru-Bar Triple Pedal Assembly with Linkage

The Wilwood 340-16605 Tru-Bar triple pedal assembly is a universal forward floor-mount system designed for brake, clutch, and throttle applications. It combines three adjustable pedals in a compact assembly, making it a practical choice for custom vehicles, competition builds, and performance driving applications where dependable pedal control and flexible installation are important. The kit includes the required linkage for streamlined setup and integration with compatible vehicle systems.
The Tru-Bar pedal design provides an adjustable 4.75:1 to 5.75:1 pedal ratio range, allowing builders to tailor pedal effort and travel to their specific braking and clutch requirements. The pedals feature a forward floor-mount configuration and a 9.16 to 10.39-inch adjustable length range, helping accommodate varied cockpit layouts and linkage geometries. Its universal design supports a broad range of custom applications while giving installers greater flexibility during fabrication and setup.
Constructed from lightweight aluminum, the Wilwood 340-16605 assembly is finished with durable black paint for a clean appearance and added surface protection. The integrated brake, clutch, and throttle pedal arrangement helps simplify packaging while maintaining a purposeful, performance-oriented layout. Confirm available mounting space, linkage compatibility, and vehicle-specific requirements before installation. This pedal assembly is supplied as a kit and is intended for use by experienced installers who can verify proper alignment, secure mounting, and safe pedal operation.

Features:

• Brand: Wilwood

• Part Number: 340-16605

• Pedal Configuration: Triple pedal assembly for brake, clutch, and throttle applications

• Pedal Ratio: Adjustable from 4.75:1 to 5.75:1

• Mounting Style: Forward floor mount

• Pedal Length: Adjustable from 9.16 to 10.39 inches

• Linkage: Included

• Material: Aluminum

• Finish: Black painted finish

• Application: Universal custom-vehicle and performance use

• Product Type: Complete pedal assembly kit
