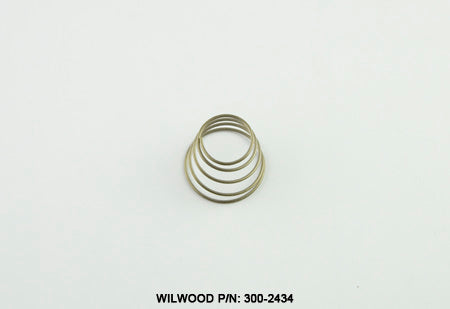

Wilwood 300-2434 Caliper Piston Spring for 1.62 to 1.88 in Pistons

The Wilwood 300-2434 Caliper Piston Spring is designed for use with Wilwood calipers equipped with 1.62 to 1.88 inch diameter pistons. This stainless steel spring helps maintain proper piston positioning and supports consistent caliper operation in demanding braking applications. It is supplied individually for targeted replacement or system servicing.
The spring features a small outside diameter of 0.770 inch, a large-end outside diameter of 1.220 inches, and a 1-inch length. Its 2.63 lb/in spring rate provides controlled resistance within the caliper piston assembly, helping support reliable brake component performance when used with compatible Wilwood parts.
Feature: Brand - Wilwood
Feature: Part Number - 300-2434
Feature: Application - Wilwood 1.62 to 1.88 inch diameter caliper pistons
Feature: Material - Stainless steel
Feature: Spring rate - 2.63 lb/in
Feature: Small outside diameter - 0.770 inch
Feature: Large-end outside diameter - 1.220 inches
Feature: Length - 1 inch
Feature: Quantity - Each
Feature: Air restricted - No
Feature: Truck freight required - No

Features:

• Designed for Wilwood calipers with 1.62 to 1.88 inch diameter pistons

• Stainless steel construction for durable service

• Provides a 2.63 lb/in spring rate for controlled piston support

• Small outside diameter measures 0.770 inch

• Large-end outside diameter measures 1.220 inches

• 1-inch spring length

• Sold individually

• Not air restricted

• Does not require truck freight
