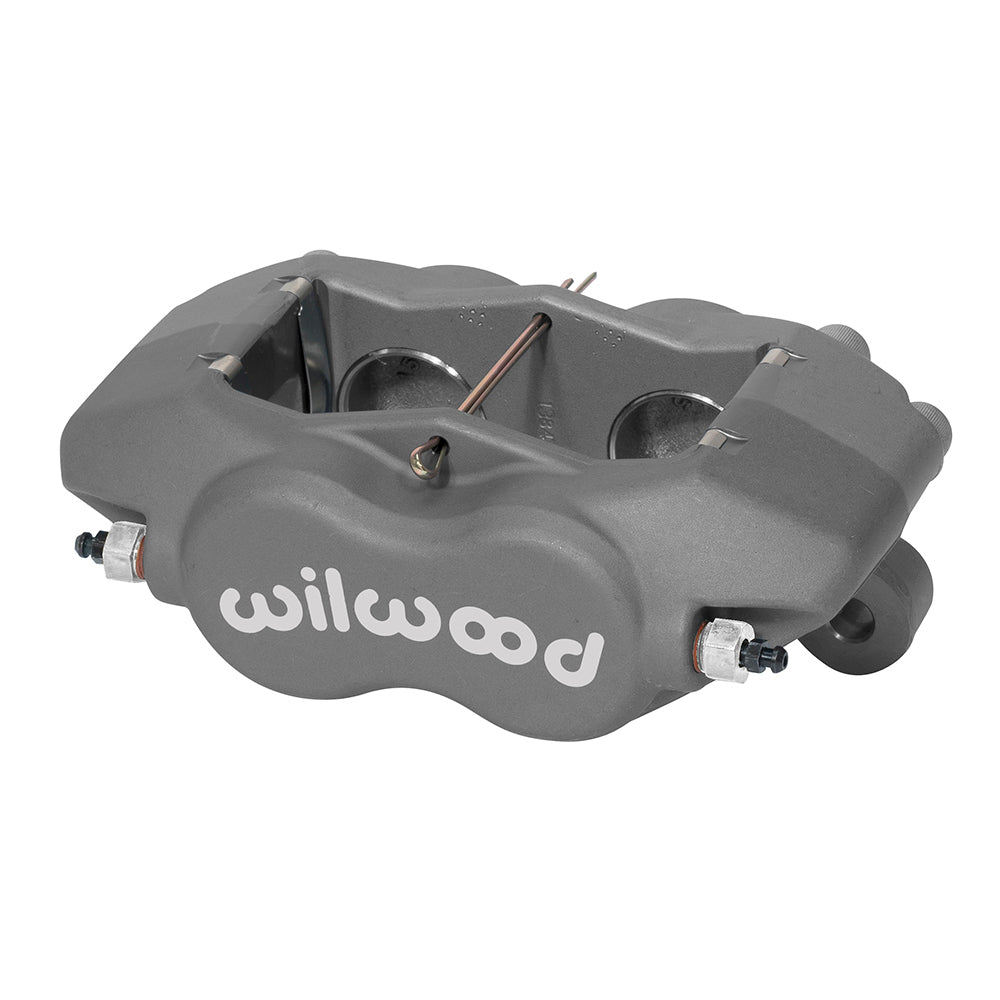

Wilwood 120-13845 Forged Dynalite Internal 4-Piston Brake Caliper for 13.06-Inch Rotors

Upgrade braking performance with the Wilwood 120-13845 Forged Dynalite Internal brake caliper. Designed for applications using a 13.06-inch outside-diameter rotor with a 1-inch rotor thickness, this four-piston caliper provides reliable clamping force and consistent performance for high-performance street, track, and competition vehicles. Its forged aluminum construction delivers strength while helping reduce unsprung weight.
The Wilwood Forged Dynalite Internal caliper features a 1.75-inch piston bore and a 5.250-inch lug-mount configuration for compatibility with properly matched braking systems. The internal bridge design supports a compact package while maintaining rigid caliper structure under braking loads. A gray anodized finish adds corrosion resistance and a clean, professional appearance.
The Wilwood 120-13845 is sold individually and is intended for use with compatible Wilwood components and properly specified rotor, bracket, wheel, and hydraulic configurations. Confirm piston sizing, mounting requirements, rotor specifications, and available wheel clearance before installation. Professional installation and complete brake-system testing are recommended to ensure proper fitment and safe operation.

Features:

• Brand: Wilwood

• Part Number: 120-13845

• Caliper Type: Forged Dynalite Internal

• Piston Count: 4 piston

• Piston Bore: 1.75 inches

• Material: Forged aluminum

• Finish: Gray anodized

• Rotor Outside Diameter: 13.06 inches

• Rotor Thickness: 1 inch

• Mounting Style: 5.250-inch lug mount

• Quantity: Sold individually
