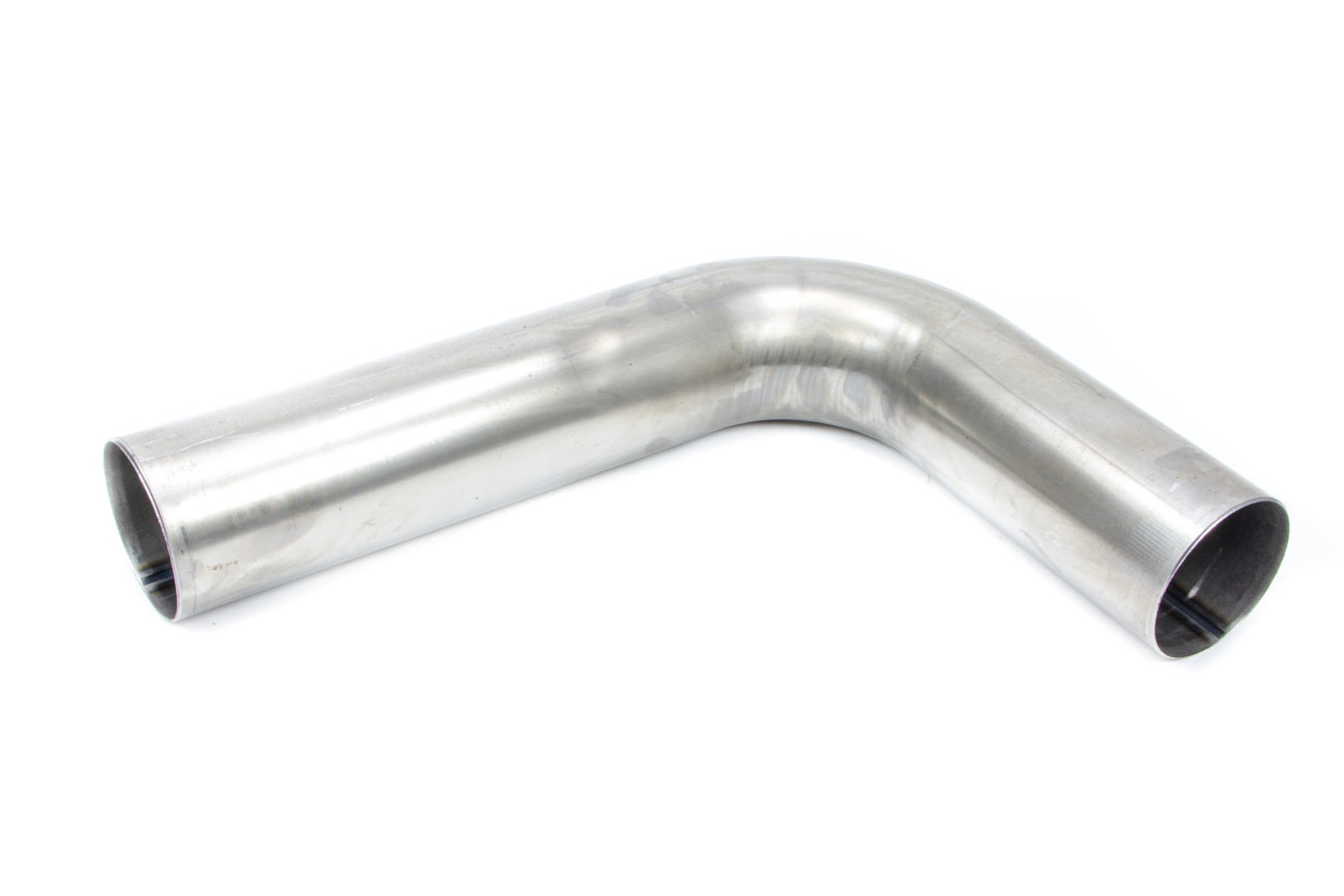

Patriot Exhaust H7063 90-Degree Mandrel Exhaust Bend, 3.5-Inch Diameter, 4-Inch Radius, 16-Gauge Steel

The Patriot Exhaust H7063 is a 90-degree mandrel-bent exhaust tube designed for custom exhaust fabrication, repairs, and performance applications. Made from durable 16-gauge mild steel, this exhaust bend provides a consistent shape through the curve while helping maintain smooth exhaust flow. Its 3.5-inch tube diameter and 4-inch bend radius make it suitable for building or modifying larger-diameter exhaust systems.
The H7063 features straight legs on both ends for easier positioning, alignment, and welding during installation. Mandrel bending helps preserve the tube’s internal passage through the turn, making this component a practical choice for fabricators seeking clean routing and dependable fitment. The steel construction can be welded and finished to match the requirements of a custom exhaust project.
Use the Patriot Exhaust H7063 for exhaust system layouts that require a precise 90-degree turn without the restrictions associated with sharply compressed bends. This component is supplied as one exhaust bend and is intended for custom installation. Verify tube diameter, bend radius, available clearance, and surrounding system components before fabrication to ensure proper fit and routing.

Features:

• Brand: Patriot Exhaust

• Part Number: H7063

• Bend Angle: 90 degrees

• Tube Diameter: 3.5 inches

• Bend Radius: 4 inches

• Bend Style: Mandrel bent

• Leg Configuration: 6-inch and 12-inch straight legs

• Material: Mild steel

• Material Thickness: 16 gauge

• Application: Custom exhaust fabrication and repairs

• Quantity: One exhaust bend
