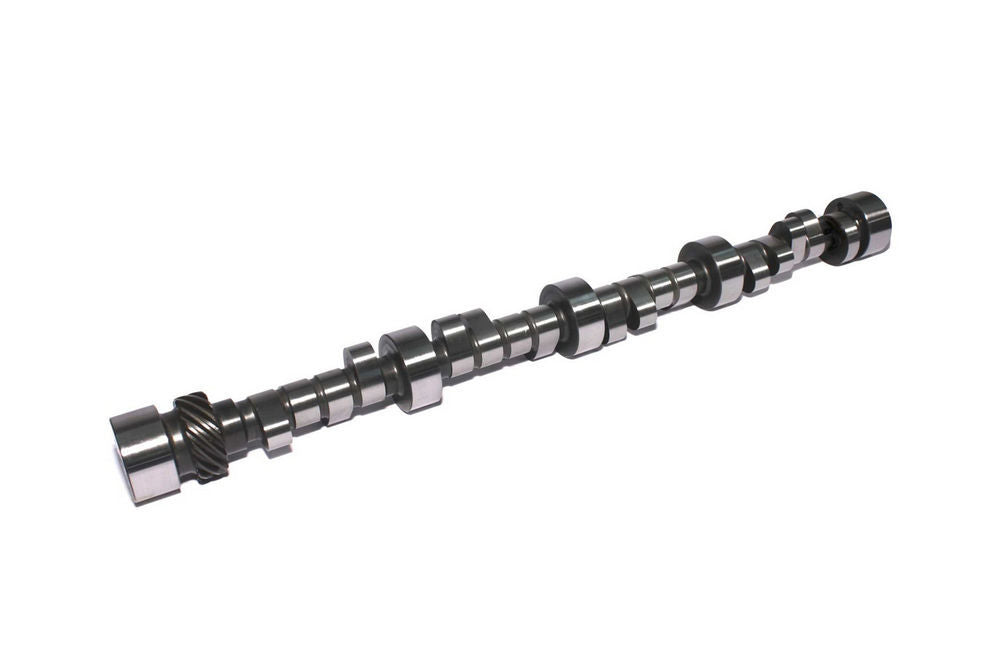

COMP Cams 12-940-9 SBC Solid Roller Cam 290A-R6

The COMP Cams 12-940-9 camshaft is designed for oval track applications using a Small Block Chevy engine. This mechanical roller camshaft features 0.645-inch intake lift and 0.630-inch exhaust lift, with 290 degrees of intake duration and 300 degrees of exhaust duration.

With a 106-degree lobe separation angle and a listed operating range of 3,000 to 7,000 RPM, the SBC Solid Roller Cam 290A-R6 is configured for high-RPM performance applications. Its mechanical roller design supports the requirements of compatible oval track engine setups.

This COMP Cams camshaft is sold individually. Review the listed lift, duration, lobe separation angle, operating range and Small Block Chevy application details to confirm it meets your engine requirements.

Features:

• Application: Oval track
• Camshaft Type: Mechanical roller
• Intake Lift: 0.645 inch
• Exhaust Lift: 0.630 inch
• Intake Duration: 290 degrees
• Exhaust Duration: 300 degrees
• Lobe Separation Angle: 106 degrees
• Operating Range: 3,000 to 7,000 RPM
• Engine Application: Small Block Chevy
• Quantity: Sold individually
