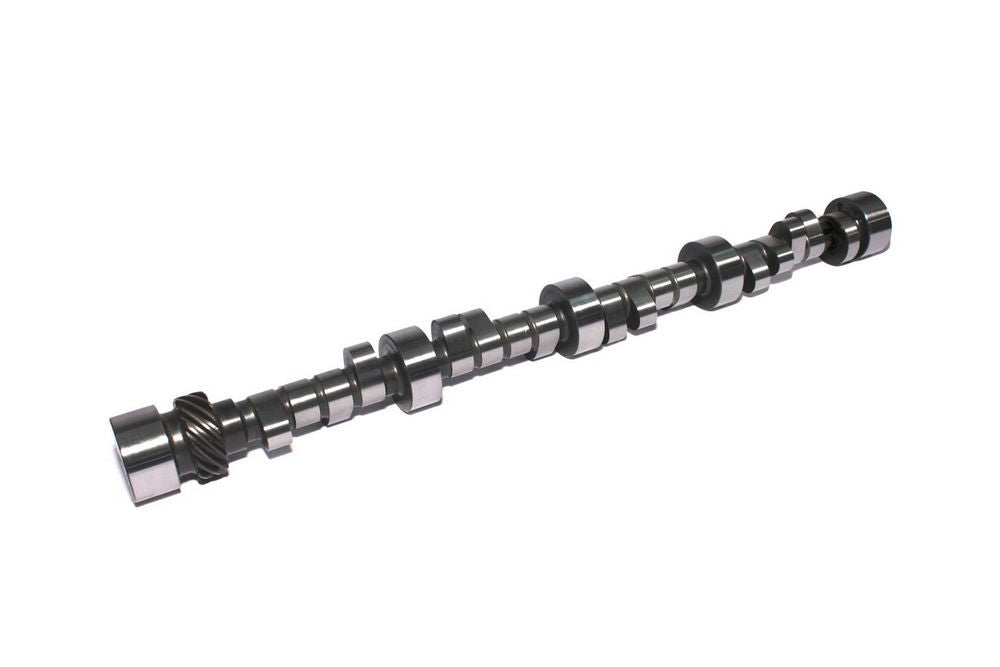

COMP Cams 12-920-9 SBC Solid Roller Camshaft 288BR-6

The COMP Cams 12-920-9 SBC Solid Roller Camshaft 288BR-6 is designed for Small Block Chevy applications requiring an oval track mechanical roller camshaft. It features a solid roller design with 0.660-inch intake lift and 0.630-inch exhaust lift.
The camshaft provides 288 degrees of intake duration and 300 degrees of exhaust duration, with a 106-degree lobe separation angle. Its operating range is listed at 3,800 to 7,000 RPM, making it suited to high-RPM oval track engine applications.
Built around COMP Cams specifications, this camshaft is supplied as an individual component. Verify engine configuration and application requirements before installation to ensure the camshaft matches the intended Small Block Chevy setup.

Features:

• Brand: COMP Cams

• Part Number: 12-920-9

• Application: Small Block Chevy

• Camshaft Type: Mechanical roller

• Intended Use: Oval track

• Intake Lift: 0.660 inch

• Exhaust Lift: 0.630 inch

• Intake Duration: 288 degrees

• Exhaust Duration: 300 degrees

• Lobe Separation Angle: 106 degrees

• Operating Range: 3,800 to 7,000 RPM

• Quantity: Each
