Advanced Clutch T1S-D03 Twin Disc Heavy-Duty Street Clutch Kit

The Advanced Clutch T1S-D03 Twin Disc Heavy-Duty Street Clutch Kit is designed with twice the disc surfaces of a single-disc kit to support improved wear resistance, heat capacity, and service life. Its proprietary Positive Lift Floater System promotes quiet operation without floater rattle or wear-prone posts, while the twin-disc design provides adjustable disc wear compensation and equal disengagement.

Performance street rigid-hub discs use premium organic friction material with high copper content for heat transfer, along with steel-backed linings for burst strength and durability. The chrome-moly hub is heat-treated for strength, and the rivet design and materials are selected for high-strength performance. The diaphragms undergo a four-stage heat-treating process.

This performance-grade kit includes a CNC-machined and dynamically balanced flywheel for installation and operation. The kit includes a pressure plate, two sprung discs, floater, flywheel, alignment tool, and grease. It is rated for 891 ft-lb of torque capacity, with an input spline quantity of 26 and a 1.125-inch input shaft diameter. Pilot bushing, release bearing, pressure plate bolts, clutch slave cylinder, and flywheel bolts are not included.

This product carries an SFI 1.2 designation and includes a one-year warranty as stated by Advanced Clutch. California Proposition 65 warning: This product can expose you to chemicals including carbon black, glass wool fibers, silica, chromium, and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Visit www.P65Warnings.ca.gov for more information.

Features:

• Twin-disc design: Provides twice the number of disc surfaces compared with a single-disc kit for improved wear, heat capacity, and service life.
• Positive Lift Floater System: Promotes quiet operation without floater rattle or posts to wear.
• Torque capacity: Rated for 891 ft-lb of torque capacity, 89% over OE.
• Disc material: Uses premium organic friction material with high copper content and steel-backed linings.
• Heat-treated components: Features four-stage heat-treated diaphragms and a heat-treated chrome-moly hub.

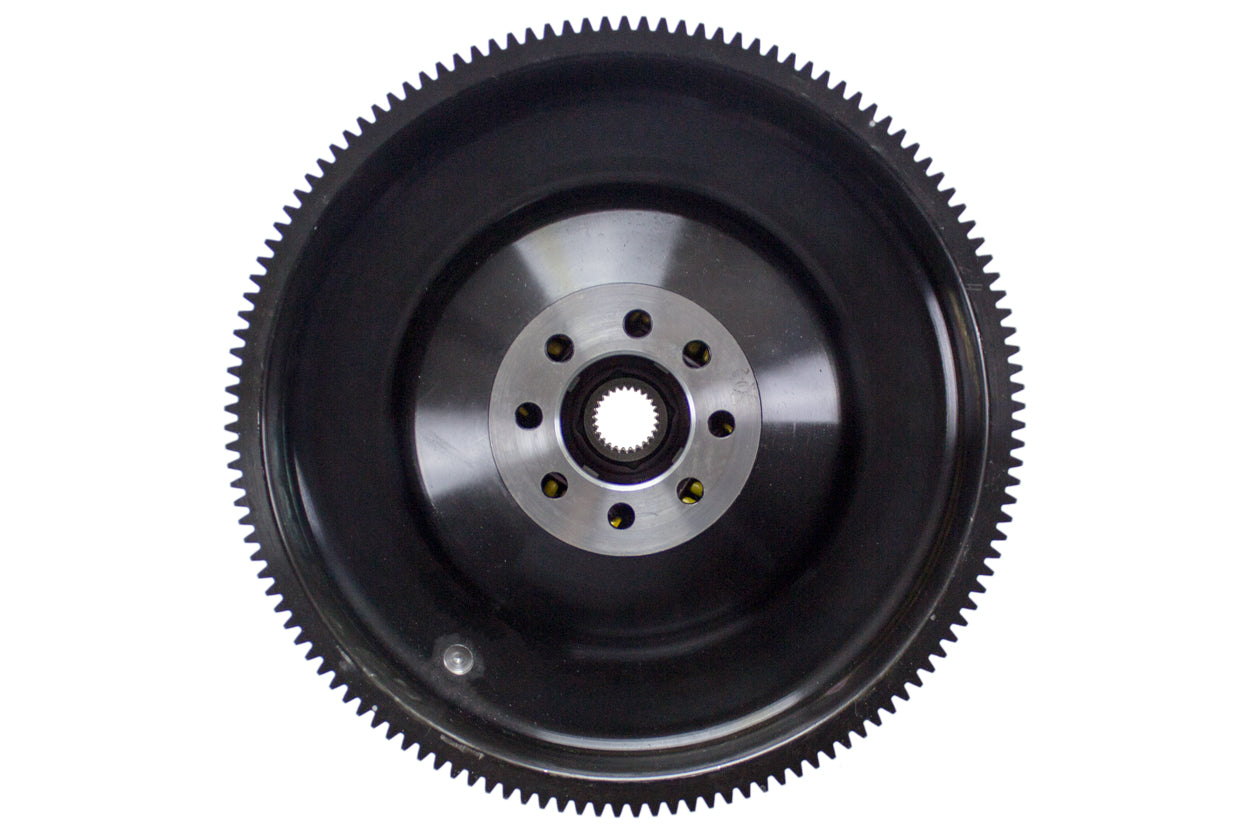

• Balanced flywheel: Includes a CNC-machined and dynamically balanced flywheel.

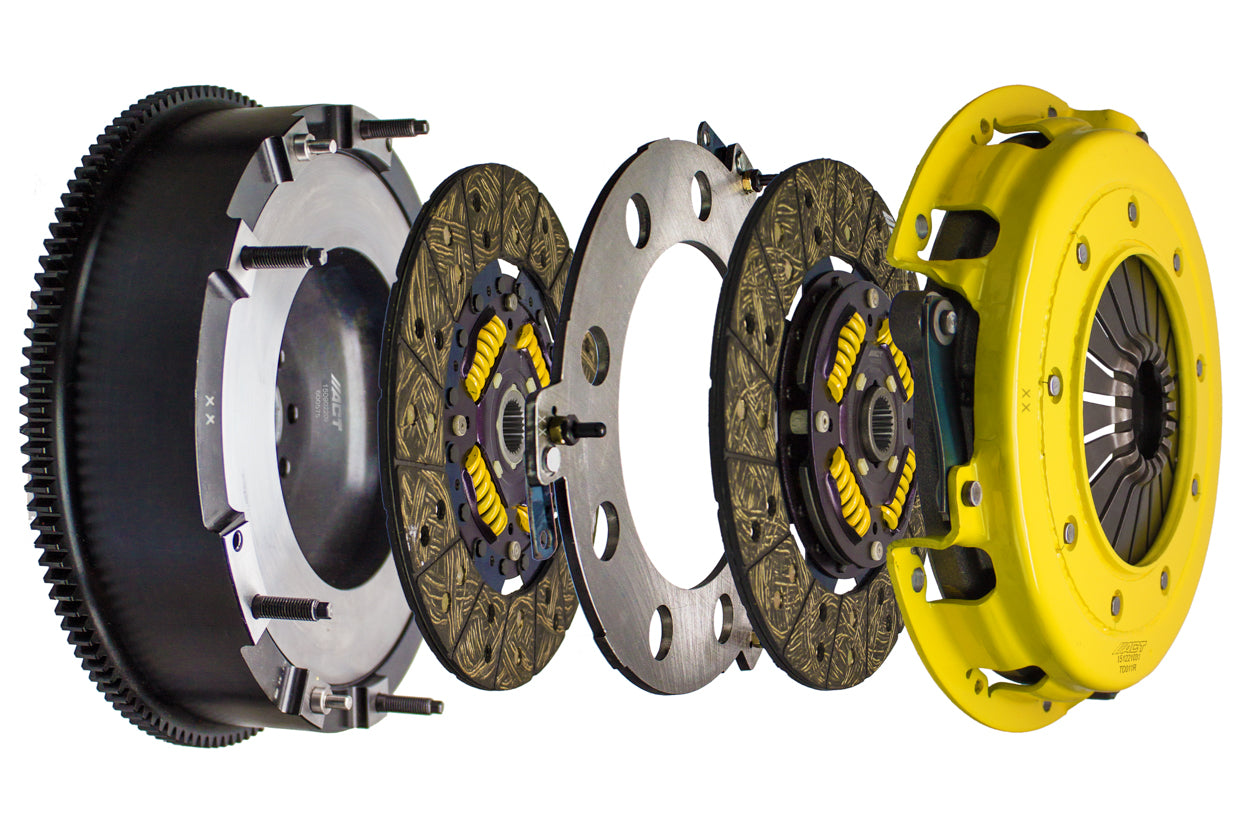

• Included components: Includes a pressure plate, two discs, floater, flywheel, alignment tool, and grease.
• Input specifications: Uses 26 input splines and a 1.125-inch input shaft diameter.
• Performance grade: Designed as a performance-grade clutch kit for street use.
• SFI designation: Carries an SFI 1.2 designation.
