Advanced Clutch SB8-HDSS Heavy-Duty Performance Street Sprung Clutch Kit

The Advanced Clutch SB8-HDSS Heavy-Duty Performance Street Sprung Clutch Kit combines a Heavy Duty pressure plate with a Performance Street sprung disc for enhanced clutch performance. Its pressure plate uses an exclusive diaphragm design intended to increase clamp load, reduce deflection, and maximize clutch life. The diaphragm undergoes a four-stage heat-treating process, while precision cover stampings support rigidity and consistency.

The Performance Street disc uses premium organic friction material with high copper content for improved heat transfer, along with steel-backed lining for increased burst strength and durability. Reduced marcel supports faster shift action, complementing the Heavy Duty pressure plate. The kit has a stated torque capacity of 259 foot-pounds, which is 59% over OE capacity.

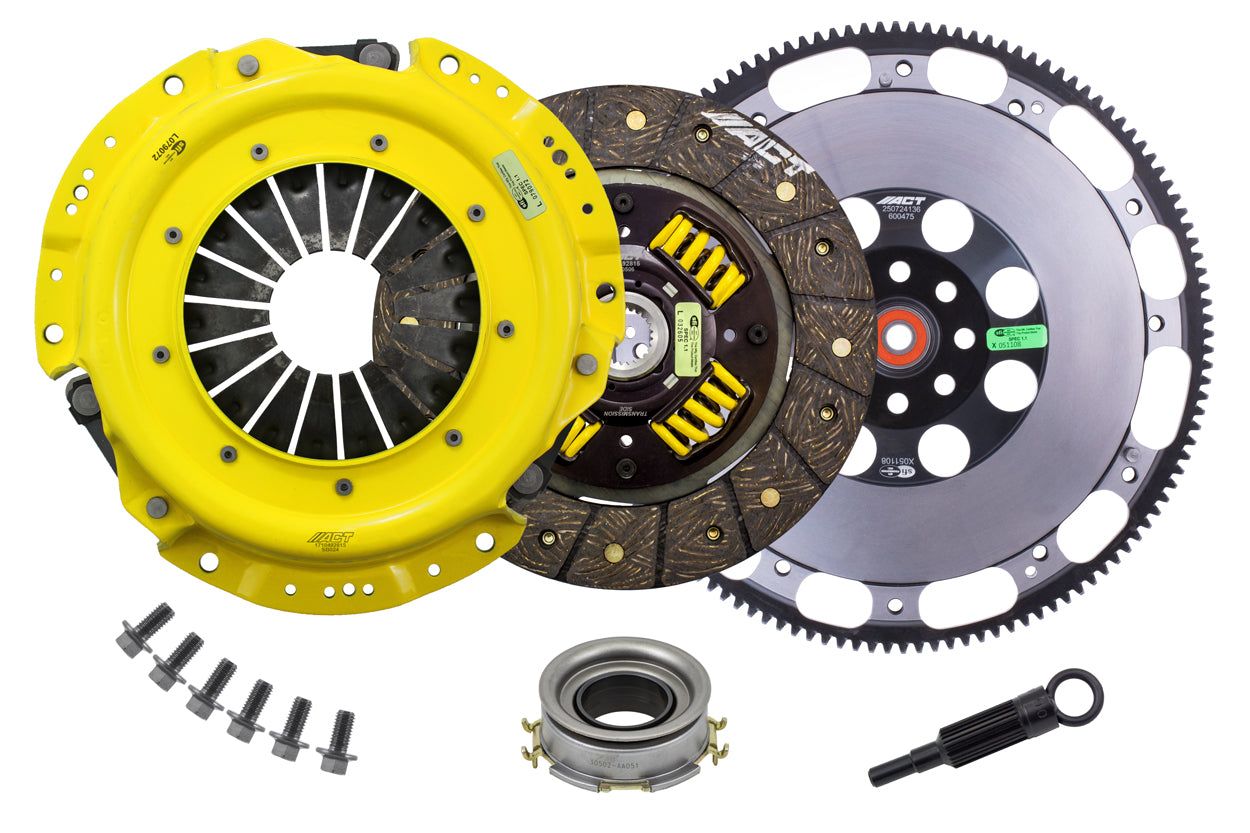

This conversion kit includes an ACT Prolite flywheel and must be used with the included ACT flywheel. The package also includes a release bearing, alignment tool, grease, flywheel bolts, and pressure plate bolts. The clutch disc is sprung, measures 224 mm in diameter, uses organic material, and is designed for a 24-spline, 1-inch input shaft. A clutch slave cylinder is not included.

This product carries a Prop 65 warning. It can expose users to chemicals including carbon black, glass wool fibers, silica, chromium, and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features:

• Heavy-Duty Pressure Plate: Uses an exclusive diaphragm design to increase clamp load, reduce deflection, and support clutch life.
• Heat-Treated Diaphragm: Features a four-stage heat-treating process for performance and durability.
• Performance Street Disc: Uses premium organic material with high copper content for heat transfer and steel-backed lining for strength.
• Fast Shift Action: Reduced marcel complements the pressure plate for quicker shifting.
• Torque Capacity: Rated for 259 foot-pounds, listed as 59% over OE capacity.
• Prolite Flywheel Included: Conversion kit includes an ACT Prolite flywheel and must use the included ACT flywheel.
• Included Hardware: Includes flywheel bolts and pressure plate bolts.
• Included Components: Includes a release bearing, alignment tool, and grease.
• Sprung Organic Disc: Features a sprung disc with organic friction material and a 24-spline, 1-inch input specification.
• Slave Cylinder: Clutch slave cylinder is not included.
• Part Number: SB8-HDSS
