Advanced Clutch MB11-HDSS Heavy Duty Performance Street Sprung Clutch Kit

The Advanced Clutch MB11-HDSS Heavy Duty Performance Street Sprung Clutch Kit combines a Heavy Duty pressure plate with a Performance Street organic sprung disc. The pressure plate uses an exclusive diaphragm design intended to increase clamp load, reduce deflection, and maximize clutch life. Its diaphragm undergoes a four-stage heat-treating process, while precision cover stampings provide rigidity and consistency.

The Performance Street disc uses premium organic friction material with high copper content for improved heat transfer, along with steel-backed lining for added burst strength and durability. Reduced marcel supports faster shift action, complementing the Heavy Duty pressure plate for performance street applications. The kit has a listed torque capacity of 276 lb.-ft., which is 46% over OE capacity.

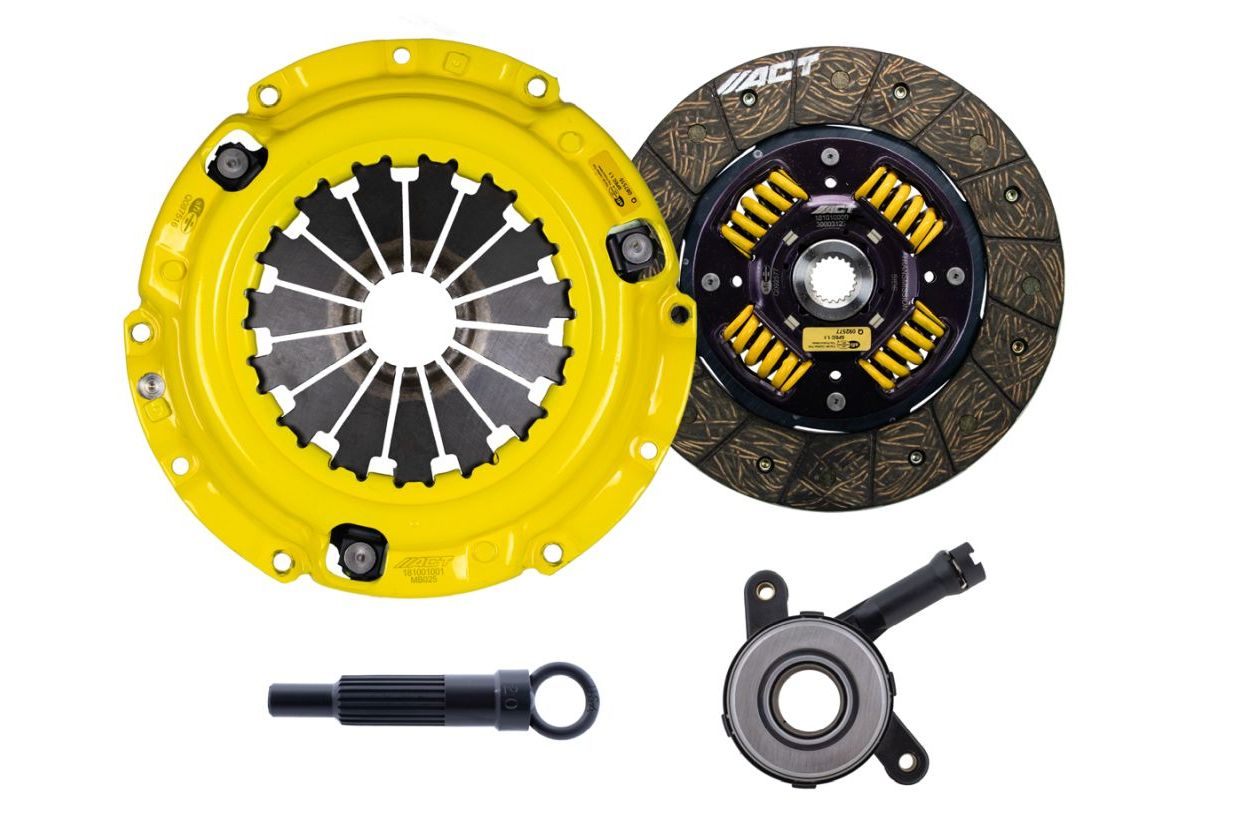

This performance-grade kit includes the pressure plate, sprung clutch disc, release bearing, alignment tool, pressure plate bolts, and grease. The clutch disc uses a 20-spline configuration with a 0.875-inch input shaft diameter. The flywheel, pilot bushing, clutch slave cylinder, and flywheel bolts are not included. This product carries a one-year warranty according to the manufacturer.

California Proposition 65 warning: This product can expose you to chemicals including carbon black, glass wool fibers, silica in clutch discs, chromium, and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Visit www.P65Warnings.ca.gov for more information.

Features:

• Heavy Duty Pressure Plate: Uses an exclusive diaphragm design to increase clamp load, reduce deflection, and maximize clutch life.
• Heat-Treated Diaphragm: Diaphragms undergo a four-stage heat-treating process for performance.
• Precision Cover Stampings: Designed to provide pressure plate rigidity and consistency.
• Performance Street Disc: Features premium organic material with high copper content for heat transfer.
• Steel-Backed Lining: Provides increased burst strength and durability.
• Reduced Marcel: Supports faster shift action to complement the pressure plate.
• Torque Capacity: Rated at 276 lb.-ft., listed as 46% over OE capacity.
• Sprung Disc Design: Uses a sprung solid clutch disc configuration.
• Included Components: Release bearing, alignment tool, pressure plate bolts, and grease are included.
• Pressure Plate Bolts: Includes M8-1.25 x 16mm pressure plate bolts.
• Not Included: Flywheel, pilot bushing, clutch slave cylinder, and flywheel bolts are not included.
• Clutch Disc Material: Organic friction material.
• Input Spline Quantity: 20.
• Input Shaft Diameter: 0.875 inch.
• Warranty: Backed by a one-year warranty according to the manufacturer.
