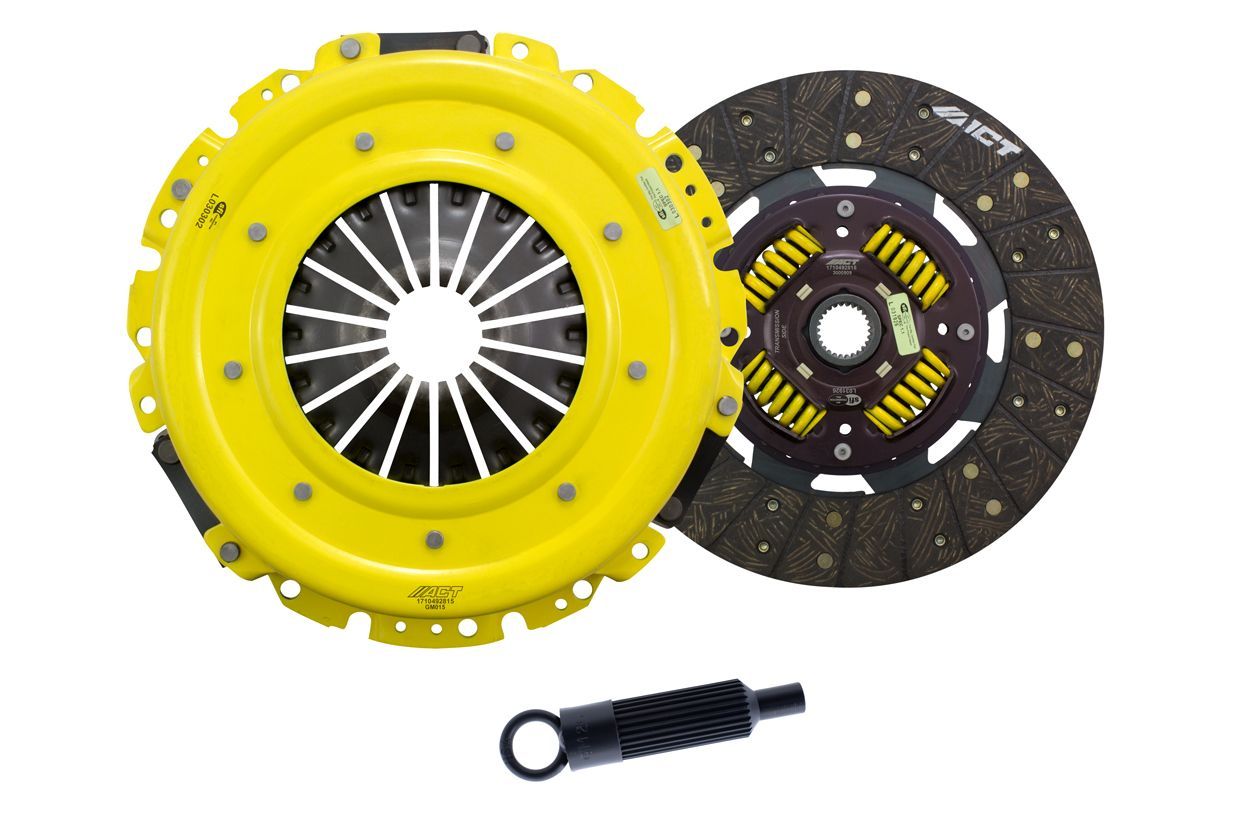

Advanced Clutch GM9-HDSS Heavy Duty Performance Street Sprung Clutch Kit

The Advanced Clutch GM9-HDSS Heavy Duty Performance Street Sprung Clutch Kit combines a Heavy Duty pressure plate with a Performance Street sprung disc. The pressure plate uses an exclusive diaphragm design intended to increase clamp load, reduce deflection, and maximize clutch life. Its diaphragms undergo a four-stage heat-treating process, while precision cover stampings provide rigidity and consistency.

The Performance Street disc uses premium organic friction material with high copper content for improved heat transfer. Steel-backed lining supports burst strength and durability, while reduced marcel is designed to promote faster shift action. The sprung disc has 26 input splines and a 1.125-inch input shaft diameter.

This performance-grade kit has a listed torque capacity of 709 foot-pounds and a torque capacity stated as 42% over OE. It must be used with a flat flywheel or ACT 600585 flywheel for LS2, LS3, and LS7 applications. The kit includes an alignment tool and grease. The flywheel, pilot bushing, release bearing, pressure plate bolts, clutch slave cylinder, and flywheel bolts are not included.

California Proposition 65 warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica in clutch discs, chromium, and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features:

• Pressure Plate: Heavy Duty design with an exclusive diaphragm intended to increase clamp load and reduce deflection
• Disc Material: Premium organic friction material with high copper content and steel-backed lining
• Disc Type: Sprung Performance Street disc with reduced marcel for faster shift action
• Torque Capacity: 709 foot-pounds, stated as 42% over OE
• Input Spline: 26 splines with a 1.125-inch input shaft diameter
• Flywheel Requirement: Must be used with a flat flywheel or ACT 600585 flywheel for LS2, LS3, and LS7 applications
• Included Items: Alignment tool and grease
• Not Included: Flywheel, pilot bushing, release bearing, pressure plate bolts, clutch slave cylinder, and flywheel bolts
