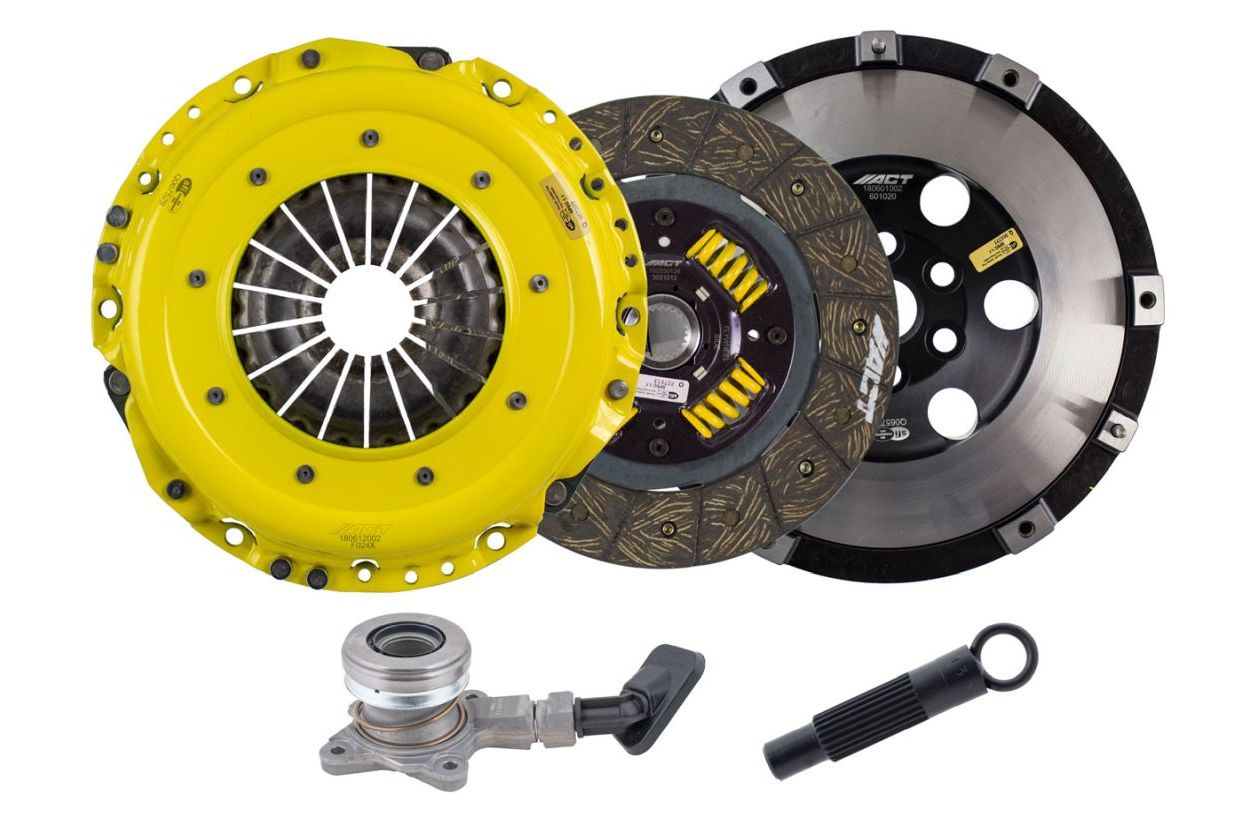

Advanced Clutch FF5-XTSS Xtreme Performance Street Sprung Clutch Kit

The Advanced Clutch FF5-XTSS Xtreme Performance Street Sprung Clutch Kit is designed for demanding street drivers seeking increased clutch performance and durability. The kit features an Xtreme pressure plate with an exclusive diaphragm design engineered to increase clamp load, reduce deflection, and support extended clutch life. The pressure plate uses precision cover stampings for rigidity and consistent operation, while each diaphragm undergoes a four-stage heat-treating process.

The performance street disc uses premium organic friction material with high copper content to improve heat transfer. Its steel-backed lining provides increased burst strength and durability, while reduced marcel supports faster shift action to complement the Xtreme pressure plate. The sprung disc design is intended to provide quiet operation with increased strength and reliability.

This performance-grade kit has a stated torque capacity of 582 foot-pounds, or 58% over original equipment. It includes a Streetlite flywheel, release bearing, alignment tool, pressure plate bolts, and grease. The pressure plate bolts are M8-1.25 x 20mm. The kit does not include a pilot bushing, clutch slave cylinder, or flywheel bolts.

The Advanced Clutch FF5-XTSS kit uses a 240 mm organic clutch disc with 23 input splines and a 1-inch input shaft diameter. It is backed by a one-year warranty, according to the product information. California Proposition 65 warning: This product can expose you to chemicals including carbon black, glass wool fibers, silica in clutch discs, chromium, and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Visit www.P65Warnings.ca.gov for more information.

Features:

• Xtreme Pressure Plate: Uses an exclusive diaphragm design to increase clamp load, reduce deflection, and support clutch life.
• Heat-Treated Diaphragm: Each diaphragm undergoes a four-stage heat-treating process for performance.
• Precision Cover Stampings: Provide pressure plate rigidity and consistency.
• Organic Street Disc: Uses premium organic material with high copper content for heat transfer.
• Steel-Backed Lining: Supports burst strength and durability.
• Reduced Marcel: Promotes faster shift action to complement the pressure plate.
• Torque Capacity: Rated at 582 foot-pounds, stated as 58% over original equipment.
• Streetlite Flywheel: Includes a Streetlite-type flywheel.
• Sprung Disc Design: Provides quiet operation with increased strength and reliability.
• Included Components: Release bearing, alignment tool, pressure plate bolts, and grease are included.
• Disc Specifications: 240 mm organic disc with 23 input splines and a 1-inch input shaft diameter.
• Not Included: Pilot bushing, clutch slave cylinder, and flywheel bolts are not included.
• Warranty: Backed by a one-year warranty according to the product information.
