Advanced Clutch AR2-HDSS Heavy-Duty Performance Street Sprung Clutch Kit

The Advanced Clutch AR2-HDSS Heavy-Duty Performance Street Sprung Clutch Kit combines a heavy-duty pressure plate with a performance street disc for dependable clutch operation. The kit is designed for a torque capacity of 255 foot-pounds, representing a 24% increase over OE capacity, and uses an ACT Streetlite flywheel.

The heavy-duty pressure plate uses an exclusive diaphragm design intended to increase clamp load, reduce deflection, and maximize clutch life. Its diaphragm undergoes a four-stage heat-treating process, while precision cover stampings provide rigidity and consistency.

The sprung performance street disc uses premium organic friction material with high copper content for improved heat transfer. Steel-backed lining contributes to burst strength and durability, while reduced marcel supports faster shift action. The disc has a 214 mm diameter, 24 input splines, and a 1.03125-inch input shaft diameter.

The kit includes the flywheel, pilot bushing, release bearing, alignment tool, and grease. It must be used with the included ACT flywheel. Pressure plate bolts, flywheel bolts, and a clutch slave cylinder are not included. This product carries a Prop 65 warning for chemicals identified by the State of California as causing cancer or reproductive harm.

Features:

• Heavy-Duty Pressure Plate: Uses an exclusive diaphragm design to increase clamp load, reduce deflection, and support clutch life.
• Torque Capacity: Rated for 255 foot-pounds, with 24% more capacity than OE.
• Street Sprung Disc: Performance street disc uses organic friction material and a sprung design.
• Heat Transfer: High copper content in the friction material supports heat transfer.
• Durability: Steel-backed lining helps provide burst strength and durability.
• Shift Action: Reduced marcel is designed to complement the pressure plate with faster shift action.
• Flywheel: ACT Streetlite flywheel is included and required for installation.

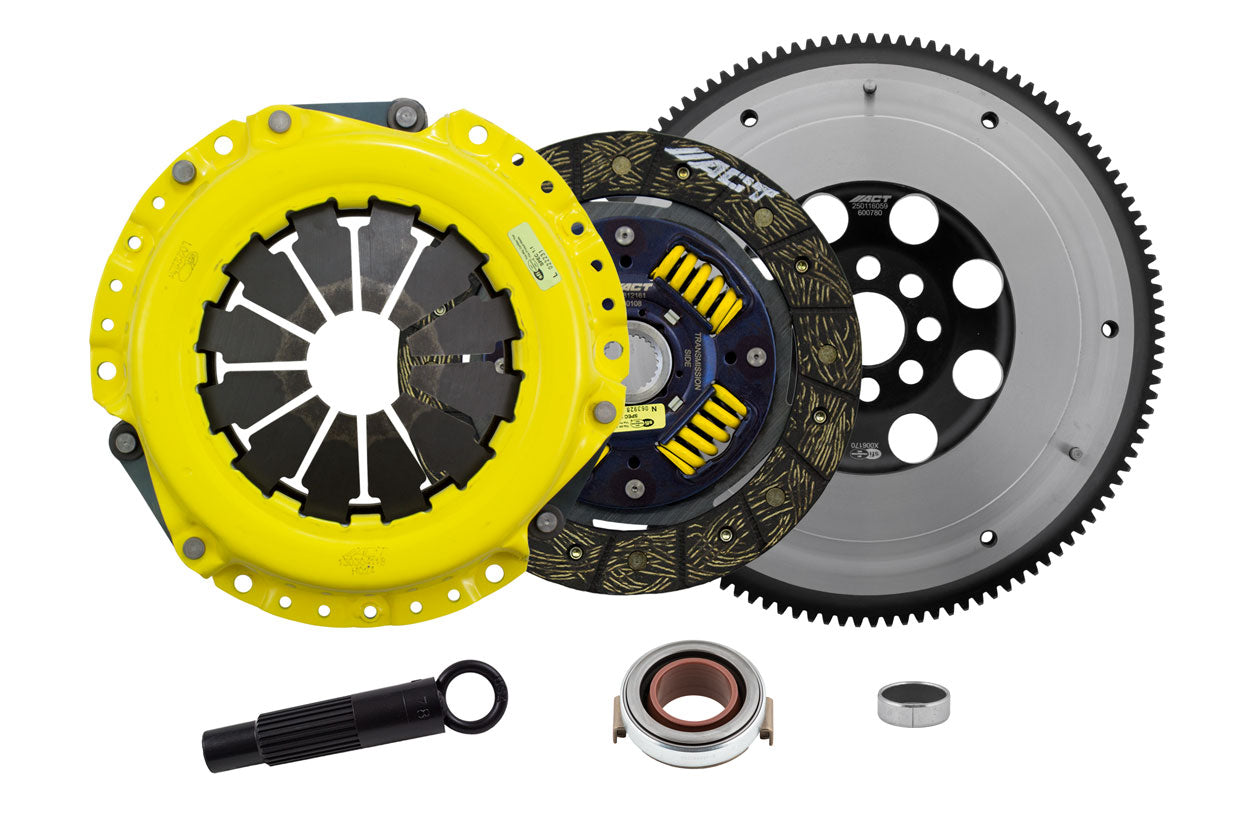

• Included Components: Includes the flywheel, pilot bushing, release bearing, alignment tool, and grease.
• Disc Specifications: 214 mm disc diameter, 24 input splines, and a 1.03125-inch input shaft diameter.
• Not Included: Pressure plate bolts, flywheel bolts, and clutch slave cylinder are not included.
