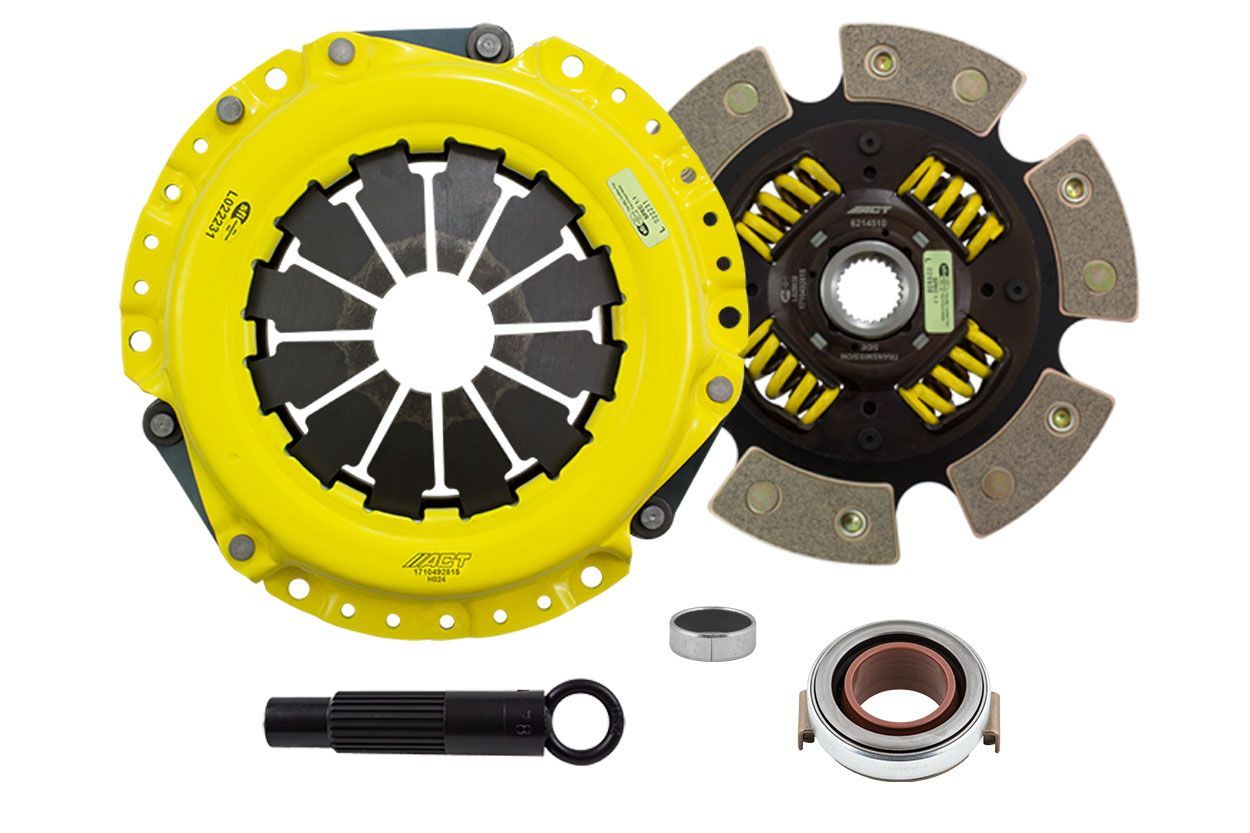

Advanced Clutch AR1-HDG6 Heavy Duty Race Sprung 6-Pad Clutch Kit

The Advanced Clutch AR1-HDG6 Heavy Duty Race Sprung 6-Pad Clutch Kit combines a Heavy Duty pressure plate with a spring-centered, six-pad ceramic race disc. Its pressure plate uses an exclusive diaphragm design intended to increase clamp load, reduce deflection, and maximize clutch life. The diaphragm undergoes a four-stage heat-treating process, while precision cover stampings provide rigidity and consistency.

The spring-centered race disc helps damp torsional vibrations and resist failure under harsh conditions. Wraparound spring windows and thicker retainer stampings support the springs, reduce stress concentrations, and improve strength and reliability. The six-pad design provides harsher engagement with faster shifting and is recommended for larger clutch sizes to help absorb more heat.

This performance clutch kit has a listed torque capacity of 330 foot-pounds, or 73% over OE. The kit includes a pilot bushing, release bearing, alignment tool, and grease. The flywheel, pressure plate bolts, clutch slave cylinder, and flywheel bolts are not included. The AR1-HDG6 uses a sprung disc with a 24-spline input and is backed by a one-year warranty.

California Proposition 65 warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica in clutch discs, chromium, and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features:

• Pressure Plate: Heavy Duty design with an exclusive diaphragm intended to increase clamp load and reduce deflection
• Clutch Disc: Six-pad, spring-centered ceramic race disc
• Engagement: Harsher engagement with faster shifting
• Torque Capacity: Rated at 330 foot-pounds, listed as 73% over OE
• Disc Type: Sprung disc designed to damp torsional vibrations
• Clutch Disc Diameter: 214 mm
• Input Spline: 24 splines
• Input Shaft Diameter: 1.03125 inches
• Included: Pilot bushing, release bearing, alignment tool, and grease
• Not Included: Flywheel, pressure plate bolts, clutch slave cylinder, and flywheel bolts
• Grade Type: Performance
